Touchscreen
The system can be used via a 10.1" touchscreen or directly via a web app on a smartphone. The screen is also available as an outdoor version.
Scanner & Reader as options
The compartment under the master compartments is used to hold optional readers, scanners and keypads. More about the options.
Base
The stainless steel plinth panel is weather-resistant and easy to clean.
Roof variants
Choose between three different roof variants.
Lighting
LED strips for illuminating the system can be integrated into panels and roof variants.
Processing quality
Variocube ProLine modules are made of high-quality KTL primed, strip galvanised sheet steel. The components exposed to the weather, such as doors and panels, are coated with a weather-resistant powder coating with a microstructure.
Adjustable doors
Our wardrobe doors can be individually adjusted using specially developed hinges. This ensures that every door is easy to open.
Locks
The locks used are maintenance-free and can withstand a tensile load of 200 kg. Breaking open is therefore only possible with special tools.
Navigate to:
ProLine locker system - versatile for your application
Large module selection also for special requirements.
The VC ProLine enclosure system offers a wide variety of Module widths and depths, various Shelf heights, Indoor/outdoor variantsdifferent Roof types and numerous options such as refrigerated compartments, payment terminals, etc., there is always a suitable solution for a wide range of customer requirements.
our innovative, flexible ProLine enclosure systems are designed and manufactured to the highest quality standards. This gives you a durable, robust locker system with a long service life and low maintenance requirements.
The electronic components used, such as the controller and touchscreen, comply with industry standards to ensure smooth operations.
All made in Austria - This is how we guarantee functionality and the greatest possible added value in Austria.
Highest quality standards for the ProLine.
Weather protected
Our locker systems are also available for outdoor applications. So they can withstand even the most demanding operations.
Safe is safe
In the event of an attempted break-in, the lock sends an emergency signal. A firewall only allows encrypted communication to the cloud.
Modular composition
Variocube systems can be flexibly assembled and expanded as required.
Maximum flexibility with the VC ProLine enclosure system modules.
A locker system is made up of several ProLine locker system modules, so the system can be perfectly customised to your individual requirements. This means you have the right compartment sizes and the right total number of compartments for your area of application. The ProLine is a versatile solution for a wide range of applications.
Your requirements have changed?
No problem, thanks to the modular design, ProLine modules can be added or exchanged for other compartment divisions at any time, your locker system adapts.
How many operator and control terminals are required?
Just one! A VC ProLine Master module can control any number of lockers. However, above a certain size, it makes sense to integrate a second operating terminal.
Is the VC ProLine suitable for outdoor use?
Yes, the ProLine modules are designed for outdoor use. Made from weather-resistant materials and finished with a special powder coating, they defy the elements. If water does get in, the sloping shelves ensure that it drains away immediately. For outdoor facilities, there are two Roof variants for selection.
VC ProLine enclosure system
The universal locker system for smart locker systems.
Master subject
All control components such as the LTE router, industrial PC, lock controller etc. are housed in the master compartment.
Touchscreen
The system is operated via a 10.1" touchscreen. This is also available as an outdoor version.
Scanner & Reader as options
The compartment under the master compartments is used to hold optional readers, scanners and keypads. More about the options More about the options here.

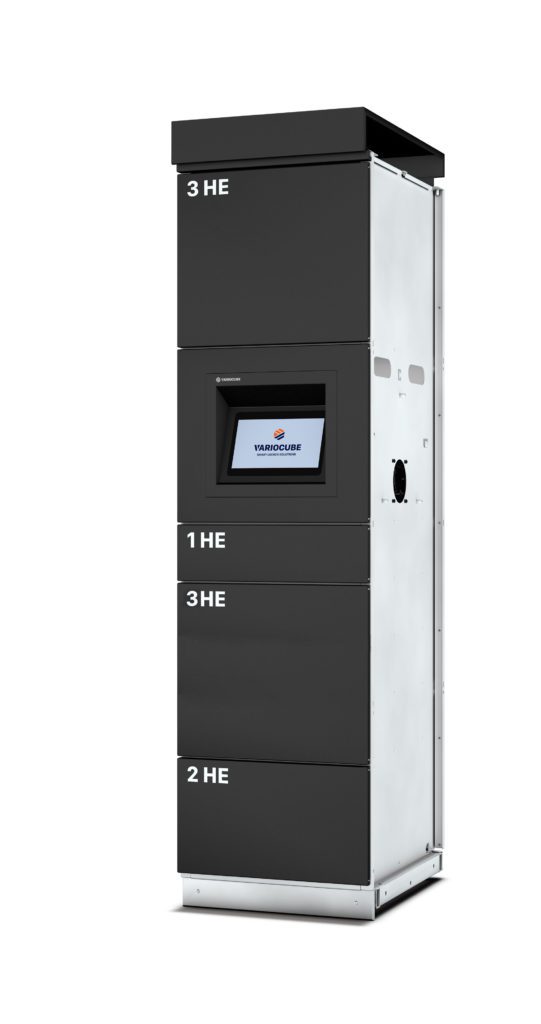

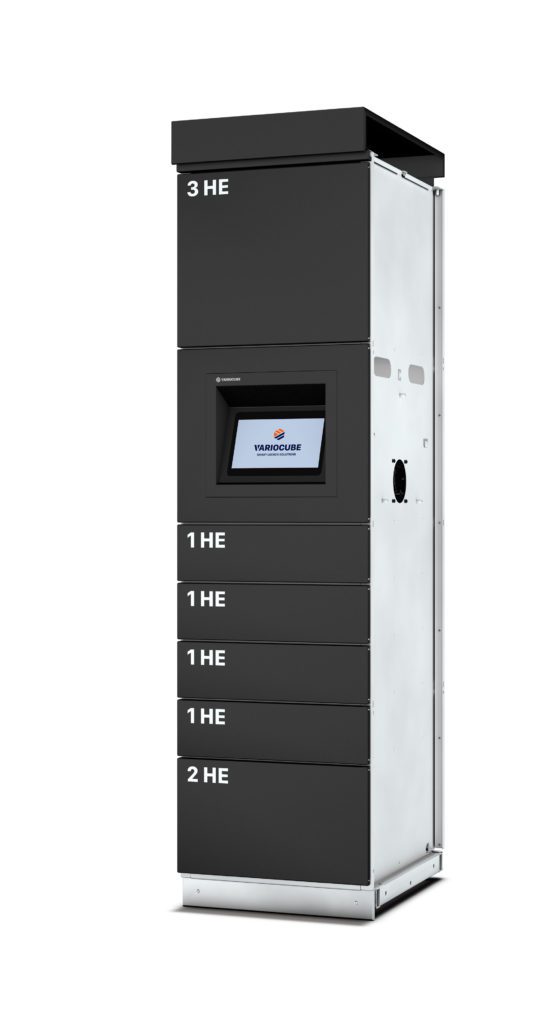

VC ProLine Master: the central operating and control terminal.
All our locker systems can be operated via apps or via the central control terminal.
The master compartment contains all electronic components, such as the industrial PC, controller and LTE router. A bright and robust 10.1″ touchscreen provides an optimal image, and the screen is tilted to ensure easy and convenient operation. With the outdoor screens, readability is possible even in direct sunlight.
Optional accessories such as scanners, readers, key pads and payment terminals are installed below the control compartment.

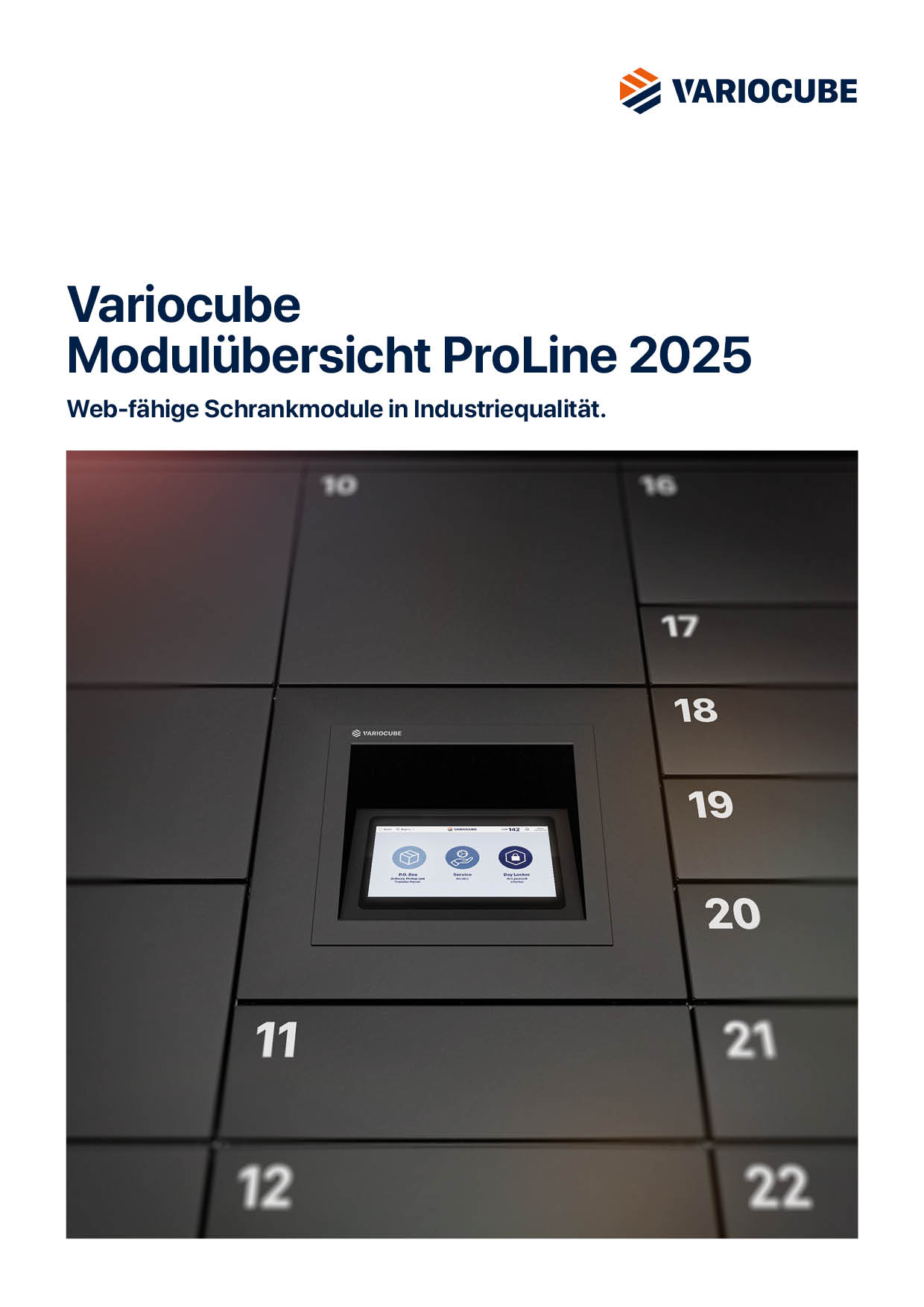

VC ProLine enclosure system - the available modules.
The Variocube ProLine product family is divided into three product lines: ProLine 450, ProLine 650 and ProLine 950 (the number stands for the internal compartment depth in millimetres). These product lines can of course be combined in terms of system technology and operated via a master module.
Click on the detail buttonto display all available modules in the ProLine series.

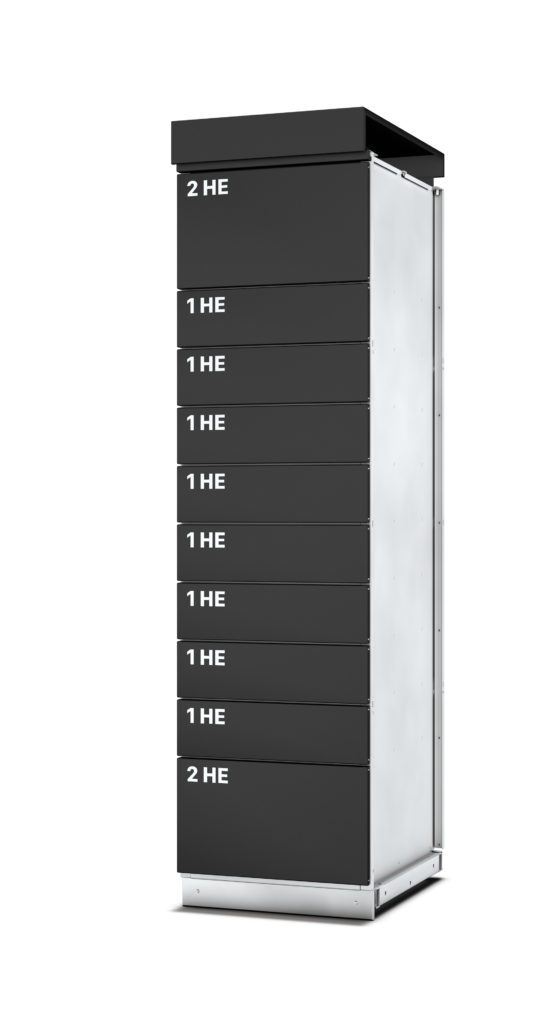

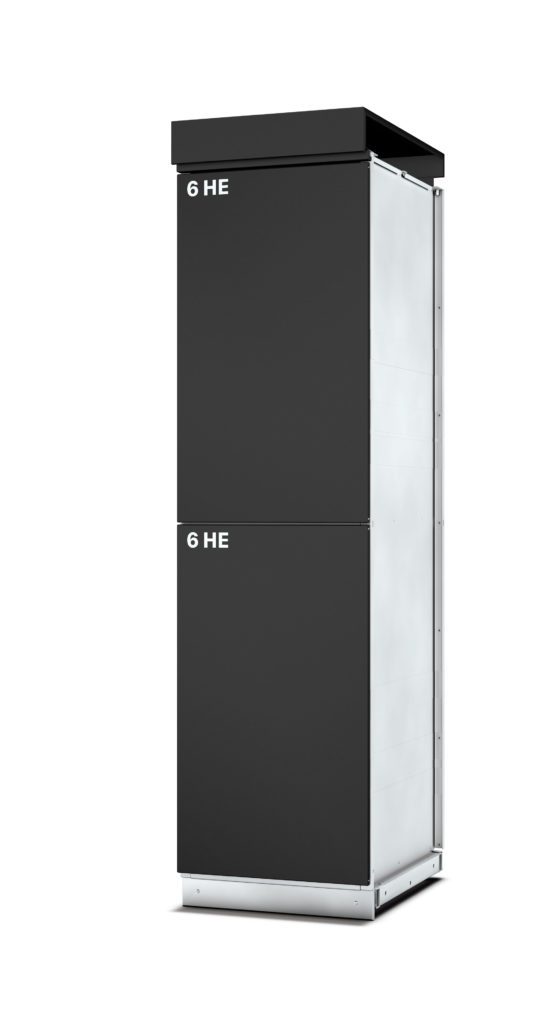

ProLine 650 Standard

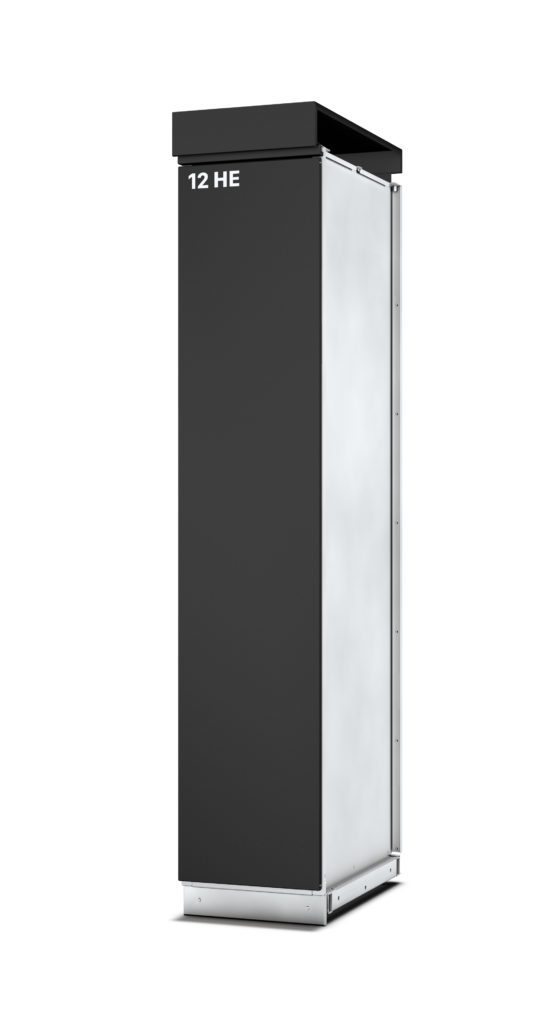

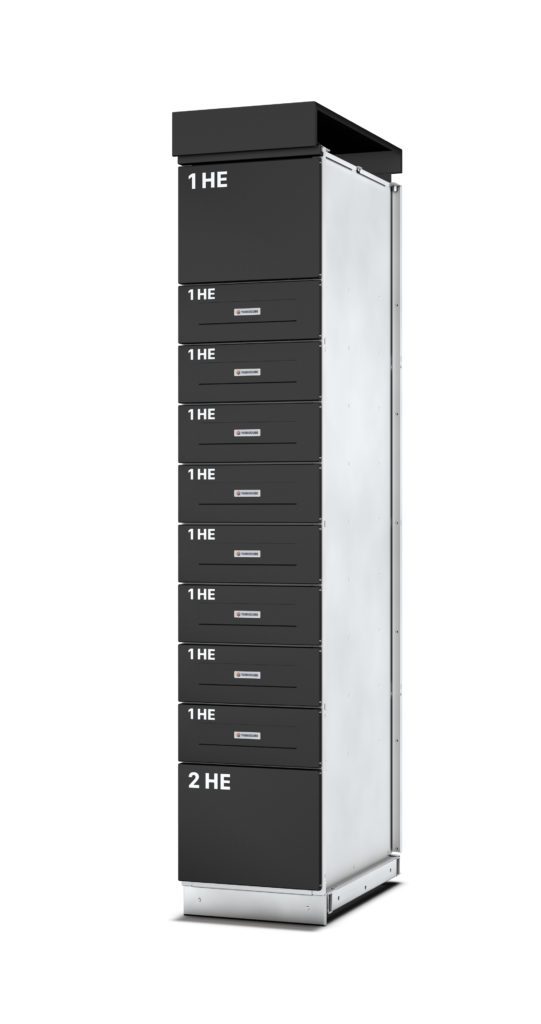

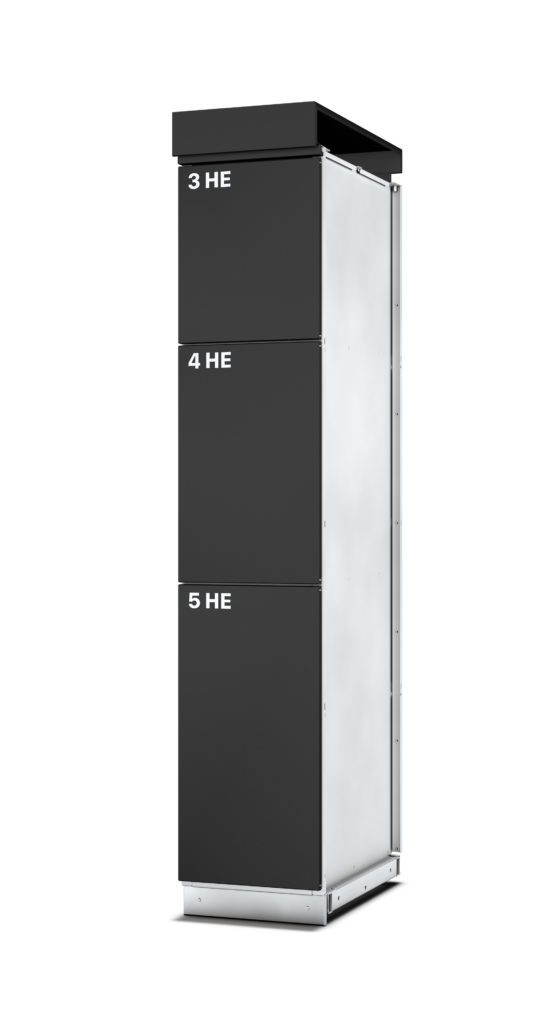

ProLine 650 Slim

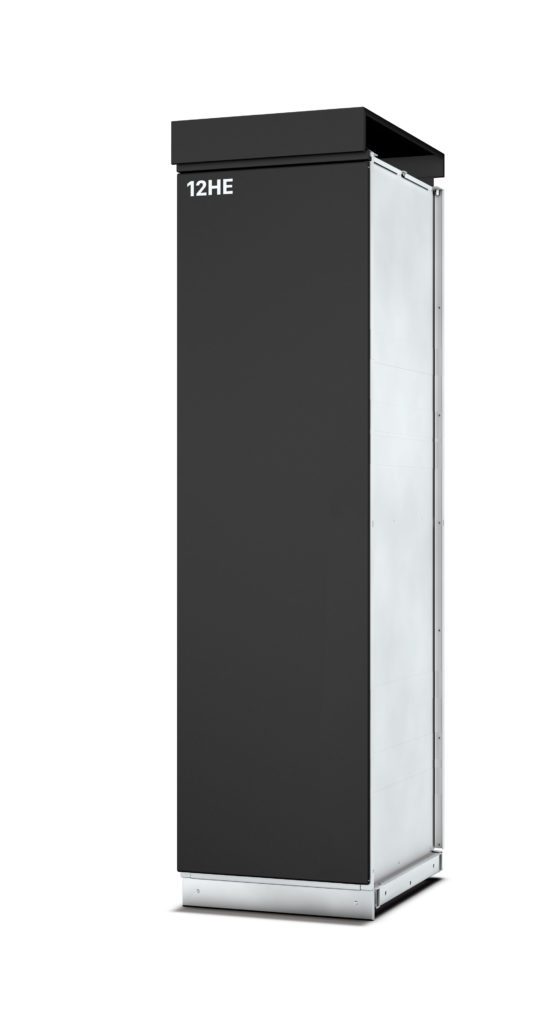

ProLine 450
Internal depth of 475 mm.

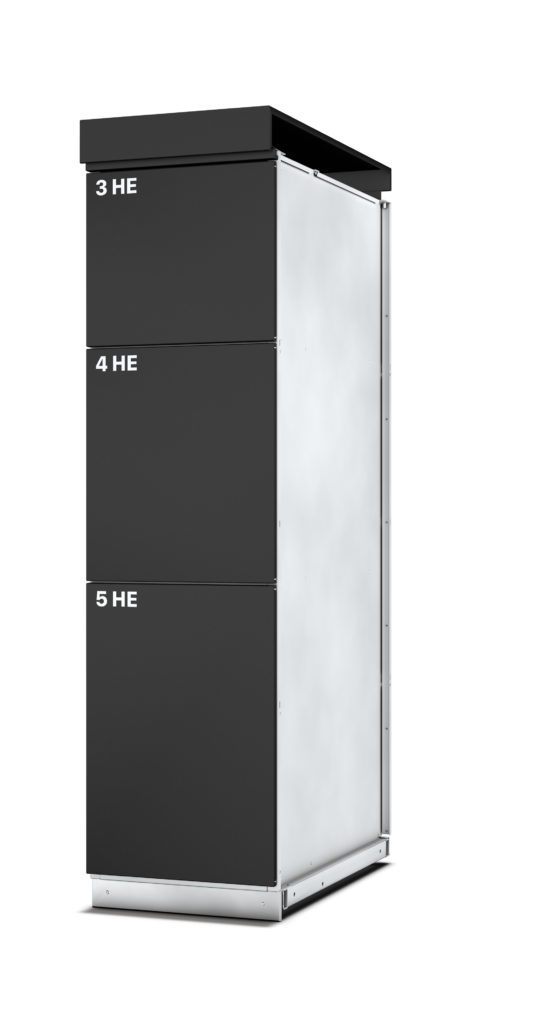

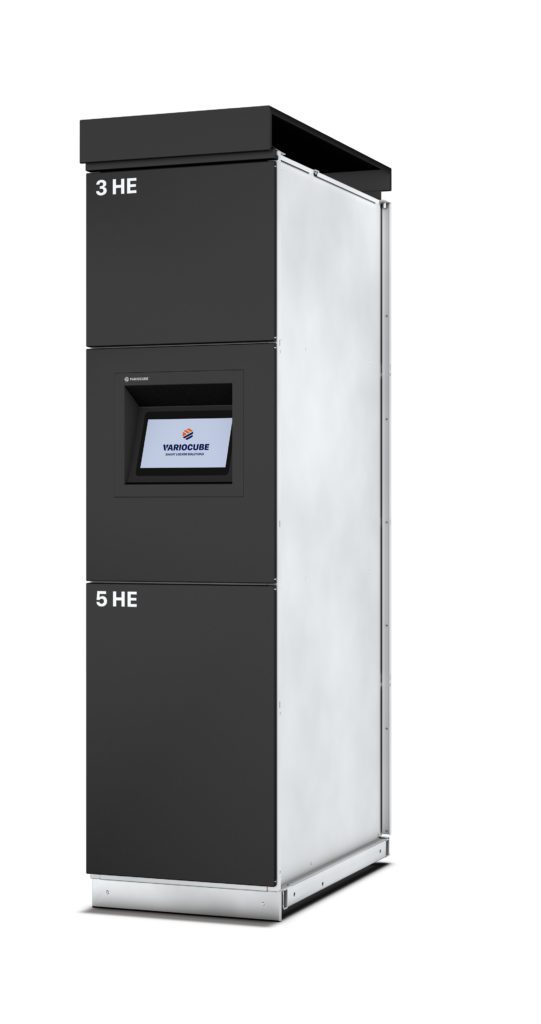

ProLine 950 Deep

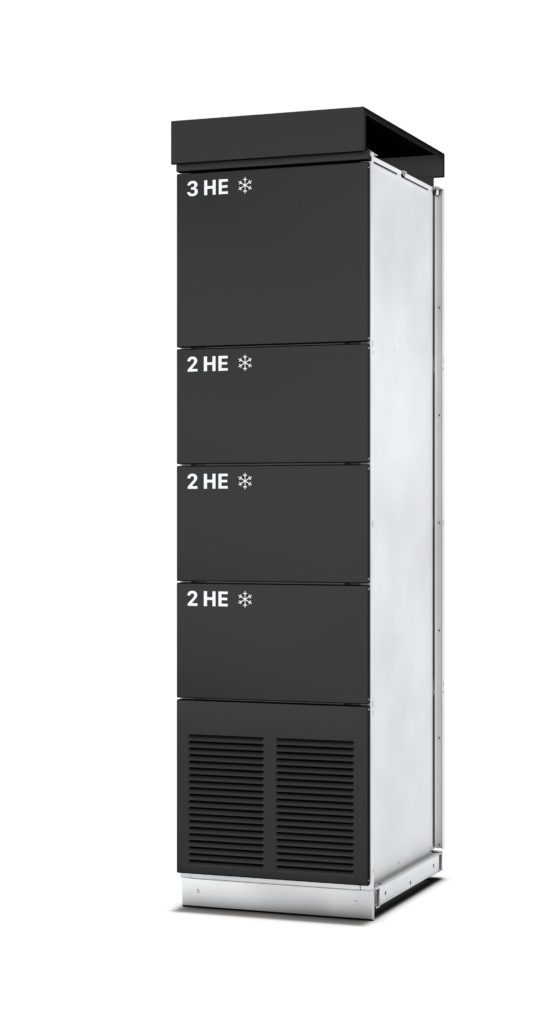

ProLine Cool

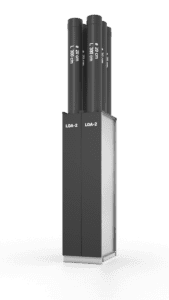

ProLine special modules
Plug & Play
Little construction effort - the required infrastructure.
Our locker systems are plug & play capable. A VARIOCUBE system only requires a 230-volt socket and internet access. The internet connection is usually established via the integrated LTE router. The connection to the cloud and loading of the corresponding software is automatic.
Our CUBE Admin Centre is directly connected to the mobile network operator's cloud service via an API. By operating our own APN in the LTE network, we have very extensive monitoring and security mechanisms at our disposal.
Indoor or outdoor? ProLine locker systems are weatherproof.
- Roof variants
- Galvanised sheet steel
- Inclined shelves - Water drainage
- Powder-coated panels
- Outdoor Display
Regardless of whether you want to install the units indoors or outdoors, we are flexible. The well thought-out design with rain drainage plates, inclined shelves for immediate water drainage etc. protects the contents from the weather. The electronic components are of industrial quality and designed to withstand large temperature fluctuations. The body is made of galvanised sheet steel and the doors, side panels and rear panels are additionally primed with cathodic dip painting and coated with a powder coating suitable for outdoor applications.
Roof variants: Protect systems and users from the weather.
ProLine roof Eco
The Eco version is our basis for outdoor use.
ProLine roof Comfort
The Comfort canopy made of laminated safety glass and stainless steel beams protects the user and the facility from direct weathering.
ProLine roof Standard
Our standard roof variant is used for indoor systems or for systems in erected enclosures.
Examples of Variocube outdoor installations:
Endless possibilities for design
Optional scanners, readers and more...
With the optional equipment options of the VC ProLine Master Module, the range of functions can be further expanded. It is possible to control external door operators, install payment terminals and various readers and scanners. Thanks to these options, you get maximum flexibility for your application.
I/OExtender
The Variocube I/O extender connects external systems with the Smart Lockers in order to address them across systems.
Scanner & Reader
Barcode / QR code scanner and NFC reader (Mifare & Legic) extend the range of functions.
Payment terminal
Goods and services can be paid for directly by EC or credit card via the payment terminal.
Keypad
An external keypad can be used to open doors and gates from outside, for example.
Maximum safety for locker systems
Burglary & theft protection
ProLine modules have Burglary protection/resistance class RC4 in accordance with EN 1627.
The locks and the hinges of the Variocube ProLine locker systems can only be opened with suitable burglary tools. Should a compartment nevertheless be forced open, the lock concerned sends this information to the control unit. Appropriate warning messages are sent to the administration.
Fire protection & extinguishing equipment
ProLine modules have the Fire protection class A1 according to EN 13501-1.
As an option, aerosol fire extinguishers can be integrated into the individual compartments or a CO2 extinguishing system can be installed in the overall system. These two extinguishing devices enable targeted firefighting until the fire brigade arrives.
Data protection
AES256 encryption enables secure data transmission. ISO 27001
certified
data centre.
The Variocube communication unit includes a firewall that blocks all internal data traffic. When commissioned, a Variocube Smart Locker establishes an encrypted connection to the central management system in the cloud. It receives its function from there and loads the corresponding applications.
Dimensions and technical data
| Indoor | Outdoor | |
| Body | Galvanised sheet steel | Galvanised sheet steel |
| Doors, side panels | Galvanised sheet steel, KTL primed and high-quality powder-coated | Galvanised sheet steel, KTL primed and high-quality powder-coated |
| Roof | Standard | Eco or Comfort |
| Base | Cathodic dip-painted shaped tube base, stainless steel base trims | Cathodic dip-painted shaped tube base, stainless steel base trims |
| Display | 10" PCAP Touch Display | 10" PCAP touch display / outdoor version, 1000 cd/m² |
| Standard colour resp. powder | anthracite metallic, Tiger Mica 618 | anthracite metallic, Tiger Mica 618 |
| Floor or wall mounting | required | required |
| Powder-coated exposed rear panel | optional available | optional available |
| LED lighting | optional available | optional available |
| Reinforced shelves | VC-3 and VC-2 | VC-3 and VC-2 |
| Barcode Reader, Payment Terminal, NFC Reader | optional available | optional available |
| Temperature range | - | -25 to +35 °C |
You can find compartment sizes and details of the modules, roof variants and accessories here:
